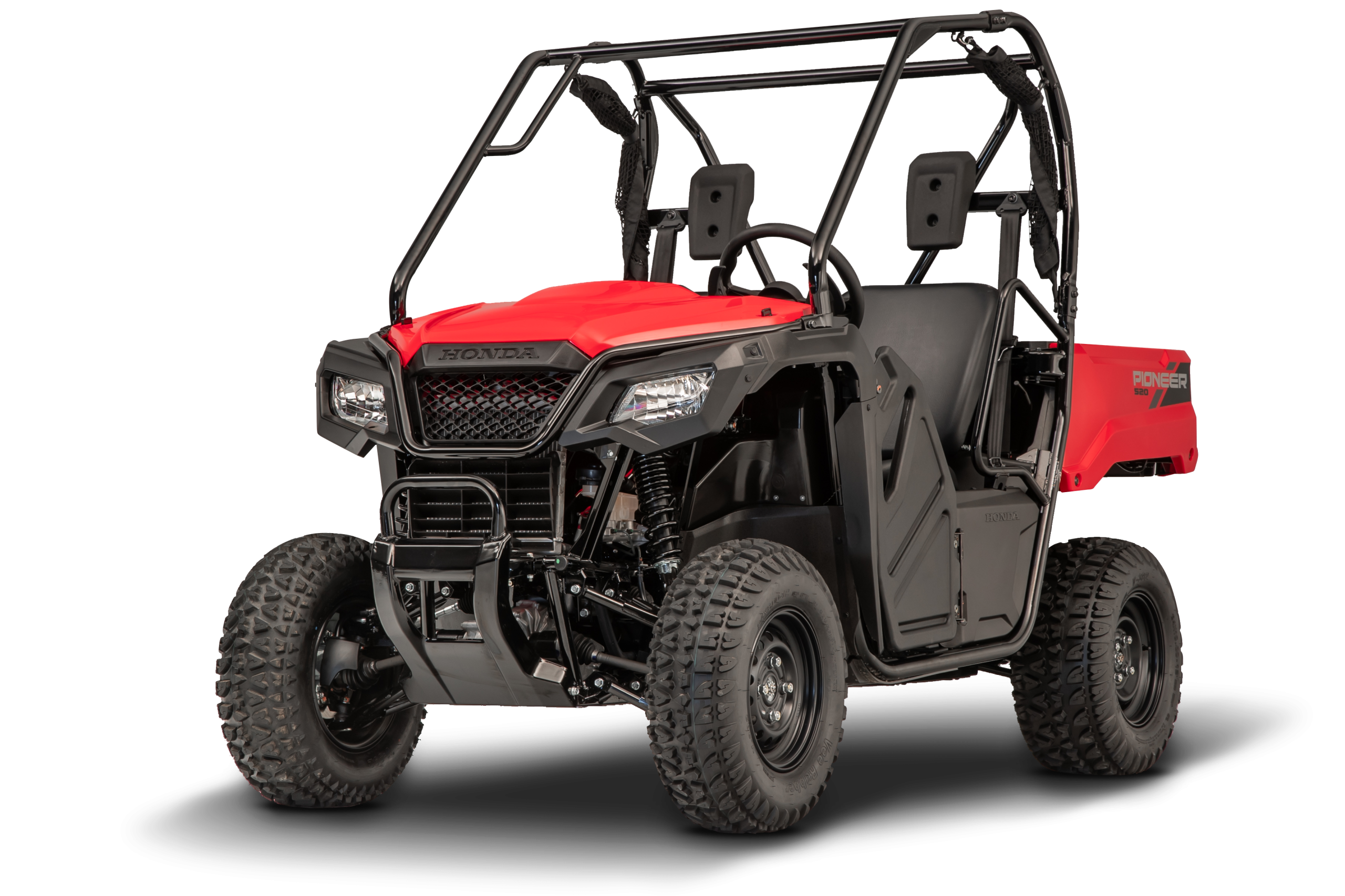

Honda Pioneer 520 – Compact, Powerful & Built for Work
ATV’s RUS are proud to present the Honda Pioneer 520.
The Honda Pioneer 520 is the ultimate combination of power, versatility, and durability – but in a more compact and agile package than a traditional UTV. Whether you’re working on the farm, managing an estate, or tackling equestrian jobs, the Pioneer 520 is built to handle it all.
| Honda Pioneer 520 Specifications | |
|---|---|
| Engine Type | 518cc liquid-cooled, wet-sump, OHV single-cylinder four-stroke |
| Fuel System | Programmed Fuel Injection (PGM-FI), 36mm throttle body |
| Transmission | 5-speed with reverse; manual foot-shift or Electric Shift (ES) or Dual Clutch Transmission (DCT) |
| Driveline | Direct drive-shafts with TraxLok® switchable 2WD/4WD and locking front differential |
| Front Suspension | Independent double-wishbone; 7.3-inch (185mm) travel |
| Rear Suspension | Swingarm with single shock; 7.3-inch (185mm) travel |
| Front Brakes | Dual 190mm hydraulic discs |
| Rear Brake | 160mm sealed mechanical drum |
| Towing Capacity | 848 lbs (384.6 kg) |
| Front Rack Capacity | 88 lbs (39.9 kg) |
| Rear Rack Capacity | 176 lbs (79.8 kg) |
| Fuel Capacity | 3.9 gallons (14.7 litres), including 1.3-gallon reserve |
| Starter | Electric with optional auxiliary recoil |
| Features (model dependent) | Electric Power Steering (EPS), Hero Red, Black Forest Green, TrueTimber® Atera Camo |
Key Features of the Honda Pioneer 520
- New 518cc longitudinal engine – larger, more powerful, and efficient.
- Electronic fuel injection (EFI) – reliable starting and smooth running, even in cold weather or at high altitude.
- Fully automatic five-speed transmission with reverse – effortless operation with plenty of pulling power.
- Paddle shift option – take full control when you need it.
- Selectable 2WD / 4WD – switch between lighter steering and maximum traction.
- Cab options available – customise your Pioneer 520 to suit your needs.
Compact but Capable
Unlike larger side-by-sides, the Pioneer 520’s compact size makes it easy to manoeuvre through gates, barns, and woodland tracks – without sacrificing performance.
ATVS R US – Official Honda Dealer in Somerset & South West England
As your local Honda quad and ATV specialist, we supply the Honda Pioneer 520 with full dealer support, servicing, and advice. Perfect for farming, equestrian work, and estate management, this versatile ATV is ready for whatever you throw at it.
Built for Tough Jobs
The five-speed automatic gearbox delivers the torque you need for heavy towing or carrying loads, while the switchable 2WD/4WD system means you’re always in control – from easy handling on light ground to serious grip in rough conditions.
Towing Capacity
Heavy load? No problem. The Pioneer 520 range has a robust 454kg towing capacity – strong enough to handle some of those jobs you’d normally need a tractor for.
Tilt bed
A strong, durable and tilting cargo bed with 204kg payload capacity helps make light work of those heavy tasks, saving you time and effort.
Adjustable Preload Rear Shocks
The Pioneer’s fully-independent rear suspension with preload rear shocks means there’s no compromise on handling when hauling heavy loads.
2WD/4WD Differential Lock
When you’re in 4WD mode and you need to get the power to both front wheels, simply push the knob to the right and the differential locks to maximise the available traction.
